As the world becomes increasingly concerned about finding sustainable solutions to meet energy demands, geothermal heating and cooling have emerged as a promising alternative. By tapping into the earth’s naturally occurring heat, this technology harnesses a renewable source of energy that is both clean and efficient.
Geothermal systems are becoming more efficient, affordable, and accessible than ever before. With potential savings of up to 70% on heating costs and 50% on cooling costs compared to traditional HVAC systems, geothermal heating, and cooling is an attractive option for homeowners looking to reduce their energy consumption and lower their utility bills.
How Geothermal Heating and Cooling Works
Geothermal heating and cooling systems work by taking advantage of the earth’s constant temperature. The temperature below the earth’s surface remains relatively consistent throughout the year, ranging from 45°F to 75°F depending on the location. This makes it an ideal source of thermal energy for heating and cooling buildings.
To harness this energy, geothermal systems use a series of pipes (known as a loop) buried underground, containing a fluid (usually water or a mixture of water and antifreeze) that circulates through the loop. When heating is required, the fluid absorbs heat from the earth, which is then transferred to a heat exchanger in the building. The heat exchanger then transfers the heat to the building’s heating system, whether it be underfloor heating, radiators, or forced air.
When cooling is required, the process is reversed. The fluid absorbs heat from the building and transfers it to the ground, where it is dissipated. The chilled water is then circulated back into the building to cool it down. In both cases, the fluid loops continuously, transferring heat or cooling as needed.
Benefits of Geothermal Heating and Cooling
Geothermal heating and cooling is a renewable energy technology that uses the steady temperature of the earth to heat and cool buildings. It offers numerous benefits, making it an attractive alternative to traditional HVAC systems.
Benefits of Geothermal Heating and Cooling:
- Reduced energy consumption and lower utility bills: Geothermal systems can significantly reduce energy consumption and lower utility bills due to their high efficiency and use of renewable energy sources. According to the US Department of Energy, geothermal systems can save homeowners up to 70% in heating costs and up to 50% in cooling costs compared to traditional HVAC systems.
- Lower greenhouse gas emissions and reduced environmental impact: Geothermal systems can significantly reduce greenhouse gas emissions and environmental impact due to their use of renewable energy sources and their ability to reduce energy consumption. According to the Environmental Protection Agency, geothermal systems emit up to 72% less greenhouse gases than traditional HVAC systems.
- Improved indoor air quality and comfort: Geothermal systems can improve indoor air quality and comfort by reducing humidity, eliminating the need for combustion appliances, and providing even heating and cooling throughout the building.
- Increased reliability and durability compared to traditional HVAC systems: Geothermal systems have fewer moving parts and are less prone to breakdowns and repairs compared to traditional HVAC systems. They also have a longer lifespan, with the underground loops lasting up to 50 years and the heat pumps lasting up to 25 years.
- Potential for tax credits and rebates to offset installation costs: Geothermal systems may be eligible for tax credits, rebates, and other financial incentives that can help offset the initial installation costs.
Types of Geothermal Systems
Geothermal heating and cooling systems are an eco-friendly and energy-efficient alternative to traditional HVAC systems. Several types of geothermal systems are available, each with its advantages and disadvantages.
Closed-Loop Systems

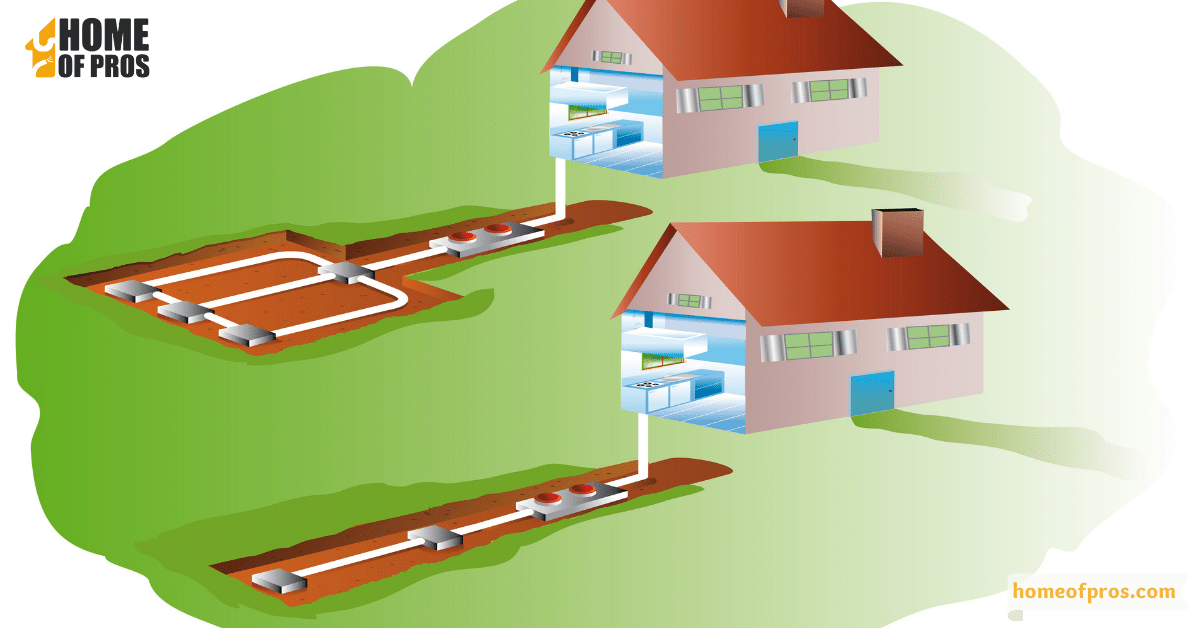

Closed-loop systems use a continuous loop of pipes buried underground to circulate a fluid (usually water or a mixture of water and antifreeze) between the building and the earth. There are two types of closed-loop systems: vertical and horizontal. Vertical closed-loop systems are typically used when space is limited, while horizontal closed-loop systems are used when space is available.
The advantages of closed-loop systems include higher efficiency, lower maintenance requirements, and greater flexibility in system design. However, they can be more expensive to install due to the cost of burying the pipes underground.
Open-Loop Systems
Open-loop systems use groundwater as the heat exchange fluid rather than a closed loop of pipes. Water is pumped from an underground well and circulated through the heat pump, where heat is extracted or added as needed. The water is then returned to the underground well or discharged into a surface body of water.
Advantages of open-loop systems include lower installation costs and higher efficiency in certain conditions. However, they require a reliable source of clean groundwater and may not be suitable for all locations due to environmental regulations.
Hybrid Systems
Hybrid systems combine closed-loop and open-loop systems to provide a more efficient and flexible solution. They use a closed loop for the primary heating and cooling loads and an open loop for supplemental heating and cooling.
Advantages of hybrid systems include higher efficiency, lower installation costs, and greater flexibility in system design. However, they require careful planning and may be more complex to operate and maintain.
Considerations Before Installing a Geothermal System
Before installing a geothermal system, there are several factors that should be considered. Firstly, it is essential to ensure that the site is suitable for installation, with enough space for underground loops or wells.
Secondly, installation costs should be carefully evaluated, as geothermal systems can be more expensive upfront than traditional HVAC systems. Maintenance requirements should also be taken into account, as well as the building’s heating and cooling loads.
It is also important to research local regulations and incentives, as some areas may offer tax credits or other financial incentives to encourage the adoption of renewable energy technologies.
Cost Analysis of Geothermal Systems
Geothermal heating and cooling systems can be a more expensive upfront investment than traditional HVAC systems, but they offer significant long-term savings due to their energy efficiency and use of renewable energy sources.
The cost of a geothermal system depends on several factors, including location, system size, and type. According to the US Department of Energy, the average cost of a residential geothermal system ranges from $10,000 to $30,000, with an average payback period of 10 to 20 years.
The table below provides a breakdown of the estimated costs for installing a geothermal system in a typical single-family home:
| Cost Item | Estimated Cost |
|---|---|
| Ground Loop Installation | $5,000 – $10,000 |
| Heat Pump and Installation | $5,000 – $10,000 |
| Ductwork Modifications or Replacement | $3,000 – $5,000 |
| Electrical Upgrades | $1,000 – $3,000 |
| Total | $14,000 – $28,000 |
It is important to note that these estimates are only a general guide, and actual costs may vary depending on the specific site, system size, and other factors.
However, it is important to consider the long-term savings that can be achieved through a geothermal system. Homeowners can expect to save up to 70% on heating costs and up to 50% on cooling costs compared to traditional HVAC systems.
Future of Geothermal Energy
The future of geothermal energy looks promising as the world increasingly seeks to transition to renewable energy sources. According to the International Renewable Energy Agency (IRENA), geothermal energy has the potential to provide up to 3.5% of global electricity demand by 2050.
Ongoing technological advancements and improvements in installation techniques and materials are making geothermal systems more efficient, affordable, and accessible than ever before. Additionally, several countries, including Japan, Iceland, and Indonesia, have made significant investments in geothermal energy development.
Innovations in enhanced geothermal systems and hybrid geothermal systems, which combine geothermal with other renewable energy sources, are also providing new opportunities for geothermal energy production. There is also increasing interest in geothermal heating and cooling systems for residential and commercial buildings.
In conclusion
Geothermal Heating and Cooling is a cutting-edge technology that offers an effective solution for heating and cooling homes and buildings. Utilizing the earth’s natural energy, it offers an efficient and eco-friendly alternative to more traditional heating and cooling methods. Geothermal systems use the constant temperature of the earth to provide heating in the winter and cooling in the summer, and with its long-lasting and durable components, it offers significant cost savings over the lifetime of the system.
